These systems are designed to minimize on site installation costs by including the complete pumping system, electrical switchgear, instrumentation/controls, and insulated building enclosure in one transportable module.
These are used for water injection, effluent transfer, pipeline, chemical injection, and firewater systems. The complete system includes pumps, electric motors, suction/discharge piping, valving, instrumentation, controls, and switchgear.

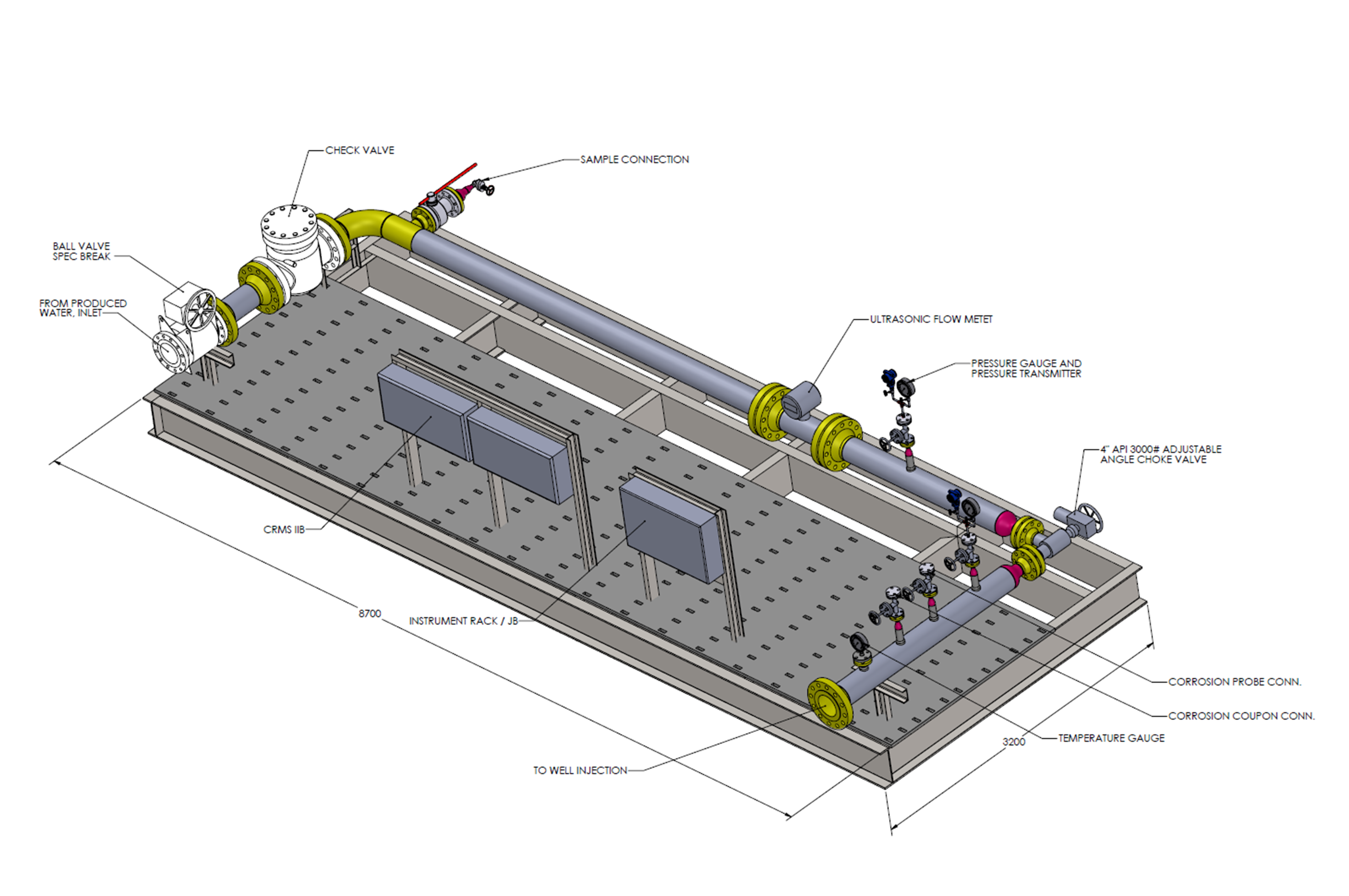

Standard Features of this Water Injection Module
Pump Types
API 674 Horizontal multiplex plunger.
ANSI B73.1 or ANSI B73.2 Single stage centrifugal
API 610 Single or multistage centrifugal
API 675 Metering
Electric motor or engine (gas or diesel) drive
Full pump/motor instrumentation including vibration, temperature, flow, and pressure monitoring. Simplex, Duplex, and Triplex pump configurations. Hydro testing of all piping
Rigid structural steel base with curbed perimeter and drain to minimize environmental impact
Human Machine Interface
All NEMA or IEC rated enclosures and components for Class 1, Div. 1 or Div. 2 electrical areas
